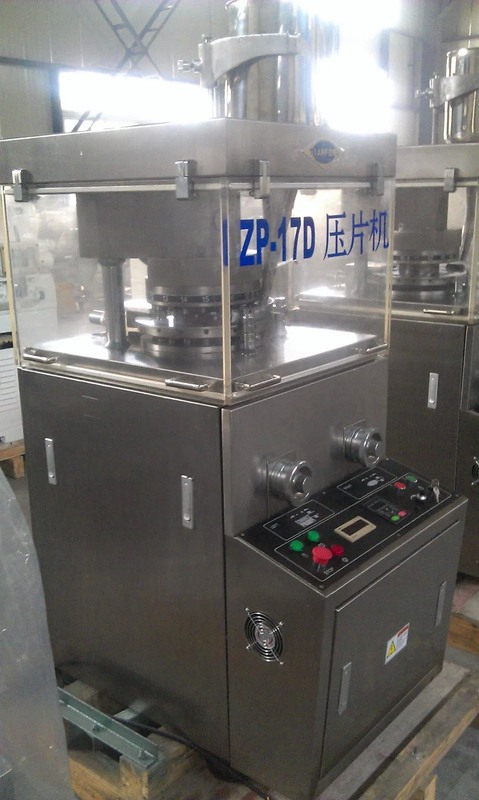

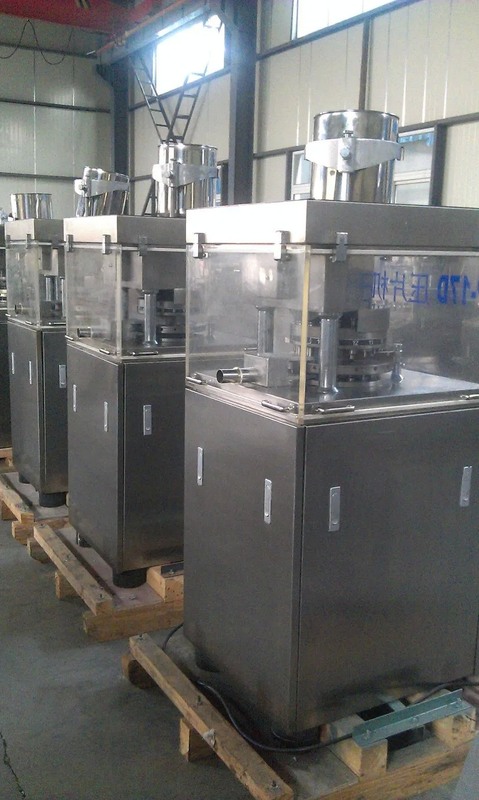

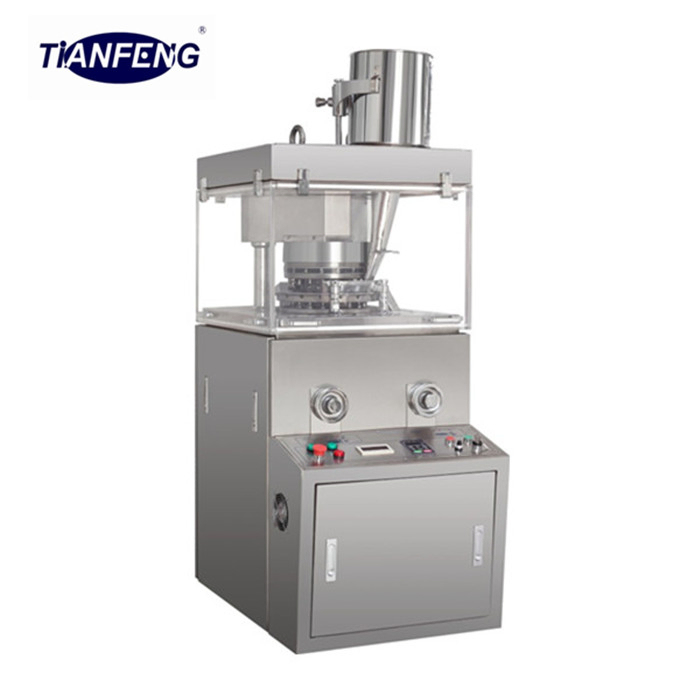

ZP15D Rotary Tablet Press Machine with 15 Dies and 60KN Max Pressure for High Capacity Tablet Production

ZP15D Rotary Tablet Press Machine

15 Dies Tablet Press Machine

60KN Max Pressure Pill Press Machine

Éntrenos en contacto con

Pida una cita

ZP15D Rotary Tablet Press Machine with 15 Dies and 60KN Max Pressure for High Capacity Tablet Production

Detalles del producto

Modelo no.:

ZP15D

Voltaje:

380V

DIES SETS:

Presión máxima:

60 kN

Diámetro de la tableta máxima:

22 mm

Profundidad máxima de relleno:

15 mm

Espesor de la tableta máxima:

6 mm

Capacidad de producción:

35000 pcs/h

Velocidad de la torreta:

37 r/min

Potencia del motor:

2.2 kW

Velocidad del motor:

960 RPM

Tamaño general:

615x890x1.415mm

Peso:

700 kg

Material:

acero inoxidable

Tipo de lubricación:

Inmerso en aceite

Pago y términos de envío

Cantidad de orden mínima

Precio

7500

Productos relacionados

ZP15D Rotary Tablet Press Machine with 15 Dies 60kn Max Pressure and 22mm Max Diameter for Candy and Pharmaceutical Industries

Consiga el mejor precio

ZP15D Model Rotary Tablet Press Machine with 15 Dies and 60KN Max Pressure for Pharmaceutical and Chemical Industries

Consiga el mejor precio

ZP15D Rotary Tablet Press Machine with 15 Dies 60KN Max Pressure and 22mm Max Tablet Diameter

Consiga el mejor precio

ZP15D Rotary Tablet Press Machine with 15 Dies and 60KN Max Pressure for High Capacity Tablet Production

Consiga el mejor precio

Éntrenos en contacto con

86-21-57664559

Contacto ahora

Descripción de producto

ZPW15D Rotary Tablet Press

Main Application

This single-press type, continuous automatic tablet press converts granular raw materials into tablets. Primarily used in the pharmaceutical industry, it also serves chemical, food, electronic, plastic, and metallurgical applications.

Operating Principle

Fully-enclosed stainless steel exterior meets G.M.P requirements
Transparent windows allow clear observation of press conditions and facilitate easy cleaning and maintenance
Capable of producing round tablets, various geometric shapes, double-layer tablets, annular tablets, and tablets with impressed letters on both sides
Centralized control panel and devices on one side for simplified operation
Integrated overload protection system safeguards punches and apparatus from damage
Fully-enclosed oil-immersed worm gear drive ensures long service life and prevents cross contamination

Technical Specifications

Dies (sets)	15
Max. Pressure (kN)	60
Max. diameter of tablet (mm)	22
Max. Depth of fill (mm)	15
Max. Thickness of largest tablet (mm)	6
Production capacity (pcs/h)	35,000
Turret speed (r/min)	37
Motor power (kW)	2.2/960, 380V/50
Overall dimensions (mm)	615 × 890 × 1,415
Weight (kg)	700
