Name: ZPB25 3 Layers Stainless Steel Rotary Tablet Press Machine with 380V Precision Control
Brand: Shanghai Tianfeng Pharmaceutical Equipment Co., Ltd.
SKU: ZPB25
Price: 21,725.00 USD
Availability: InStock

Hogar > productos > máquina rotatoria de la prensa de la tableta >

ZPB25 3 Layers Stainless Steel Rotary Tablet Press Machine with 380V Precision Control

3 Layers Tablet Press Machine

ZP25 Rotary Tablet Press

380V Pill Press Machine

Lugar de origen:

Shanghai, China

Nombre de la marca:

Tianfeng

Certificación:

CE ISO

Número de modelo:

ZPB25

Éntrenos en contacto con

Pida una cita

Detalles del producto

Modelo No.:

ZP25

Materiales:

Acero inoxidable

Formulario de dosificación terminada:

Tableta

Precisión:

Precisión

Voltaje:

380V

Computerizado:

Computerizado

personalizado:

personalizado

Condición:

Nuevo

Paquete de transporte:

Estuche de madera

Capas:

Tipo:

Máquina de prensa de tableta giratoria

Código Hs:

8479899990

Pago y términos de envío

Cantidad de orden mínima

Precio

Welcome to consult

Detalles de empaquetado

Cuadro de madera contrachapada para exportación

Tiempo de entrega

30-45 días hábiles

Capacidad de la fuente

50 Unidad/Mes

Productos relacionados

Professional Rotary Pill Press Machine for Pharmaceutical Manufacturing Needs

Consiga el mejor precio

Status Code 403 Server openresty Description The server understood the request Rotary Tablet Press Machine

Consiga el mejor precio

Advanced Rotary Tablet Press Machine for Smooth and Precise Production

Consiga el mejor precio

Openresty Server Smooth Tablet Production with Rotary Tablet Compression Machine

Consiga el mejor precio

Éntrenos en contacto con

86-21-57664559

Contacto ahora

Descripción de producto

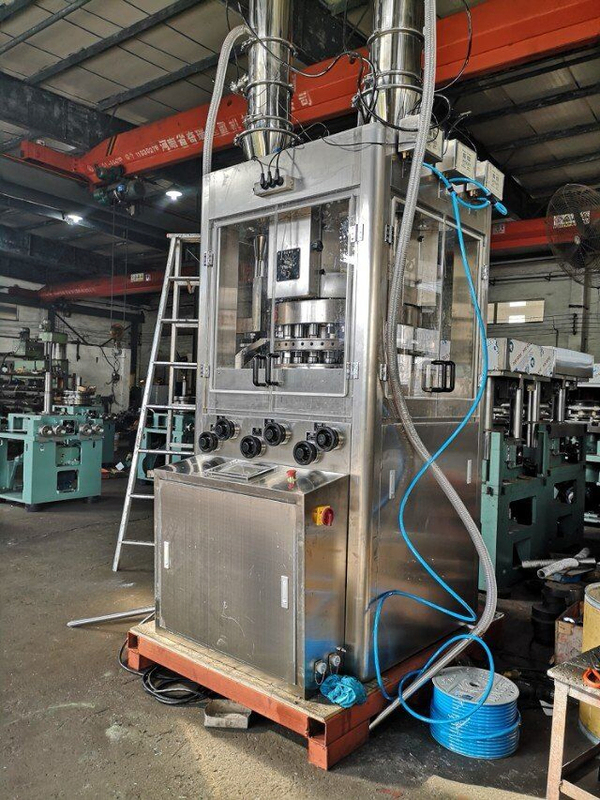

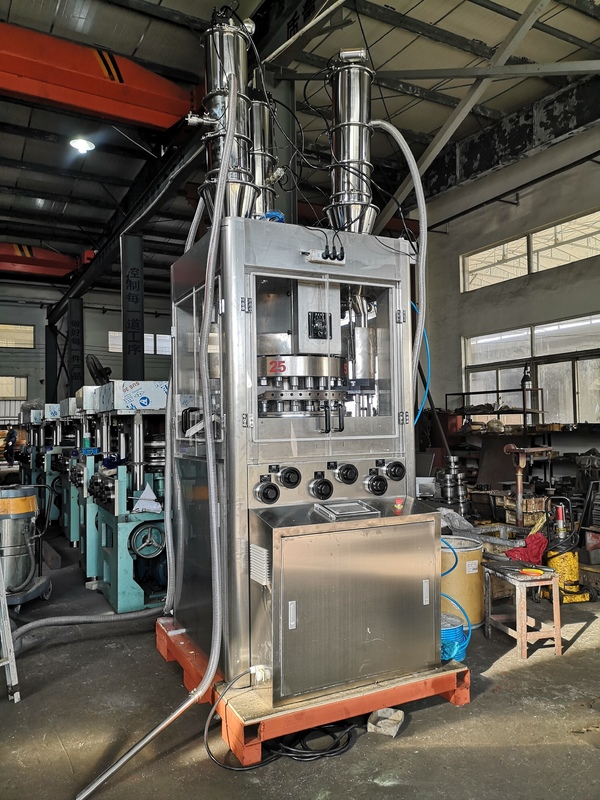

ZP25 Big Tablet Press Machine (3 Layers)

Applications of tablet press

1.1 The ZP23 rotary tablet press is mainly used in pharmaceutical, foodstuff, chemical and electronic industries. The machine is used to press various granular materials that meet the requirement for tablet pressing into tablets.

1.2 The machine is suitable to the tablet pressing production with the granular materials that contain less 10% of powder (over 100 meshes)

1.3 The machine is applicable for pressing round tablets, shaped and double-sided letter-engraved tablets.

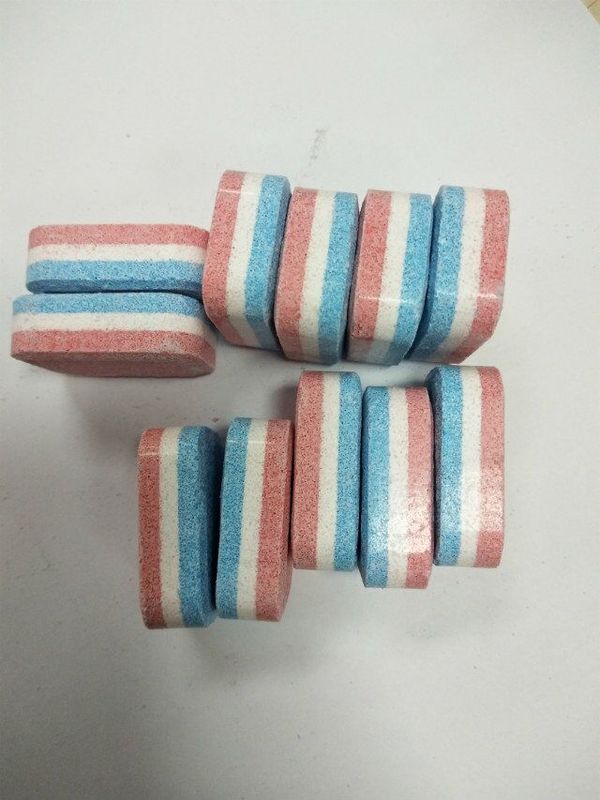

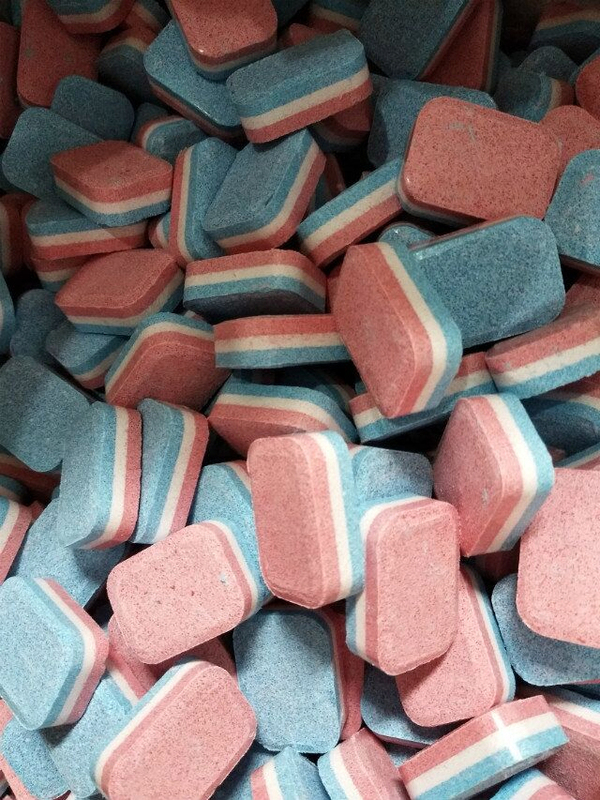

1.4 The machine is applicable for pressing single-layer, double-layer and three-layer tablets. In ordering the machine, the customer should state clearly in the contract that single-layer, double-layer or three-layer tablets will be produced on the machine so that we can adjust the machine according to the customer^,s requirement and the necessary spare parts and accessories can be supplied when the machine is delivered form our factory.

Main Specifications of tablet press

Item	Description		Unit	Quantity
1	Number of punches and dies		Set	23
2	Max. compression pressure		KN	100-200
3	Max. tablet diameter		mm	56
5	Diameter of upper and lower punches		mm	58
6	Length of upper punch		mm	229
7	Length of lower punch		mm	219
8	Diameter of die		mm	75
9	Height of die		mm	55
10	Working diameter of turret		mm	640
11	Rotation speed of turret		r/min	10~18
12	*Max. tablet output(double output)one layer*		*Tab/h*	*27600-49680*
	*Max. tablet output(double output)double layer*		*Tab/h*	*14000-24840*
	*Max. tablet output(double output)three layer*		*Tab/h*	*14000-24840*
13	Power of main motor		KW	11
14	Height of main machine	With hopper	mm	2140
14	Height of main machine	Without hopper	mm	2000
15	Floor space of the main machine		mm	1500 x 1800
17	Net weight of the main machine		kg	4100
